Operation Mode

1. Patient positioning adaptation

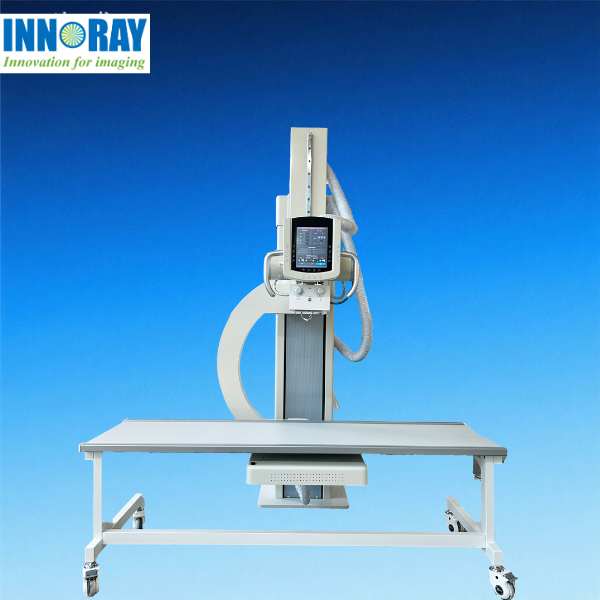

   Patients select supine (on the exam table) or standing positions based on examination needs; adjust the table height or standing posture for optimal alignment.

2. Device positioning adjustment

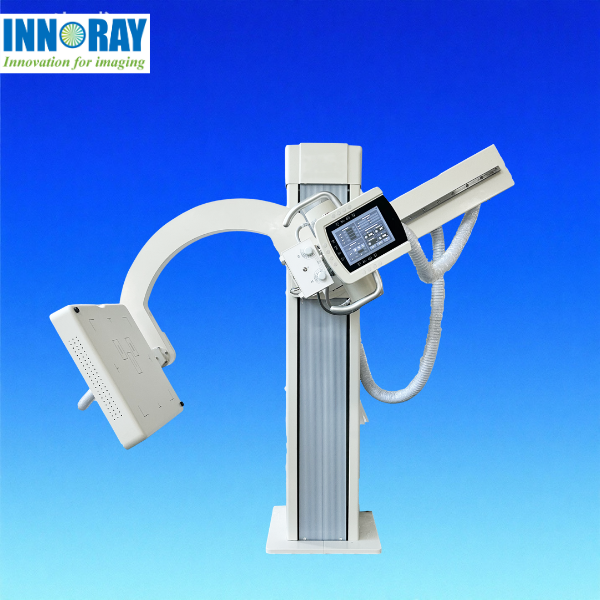

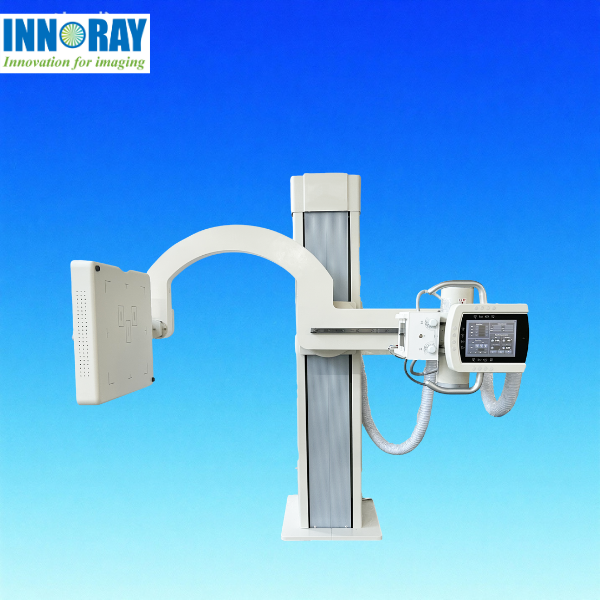

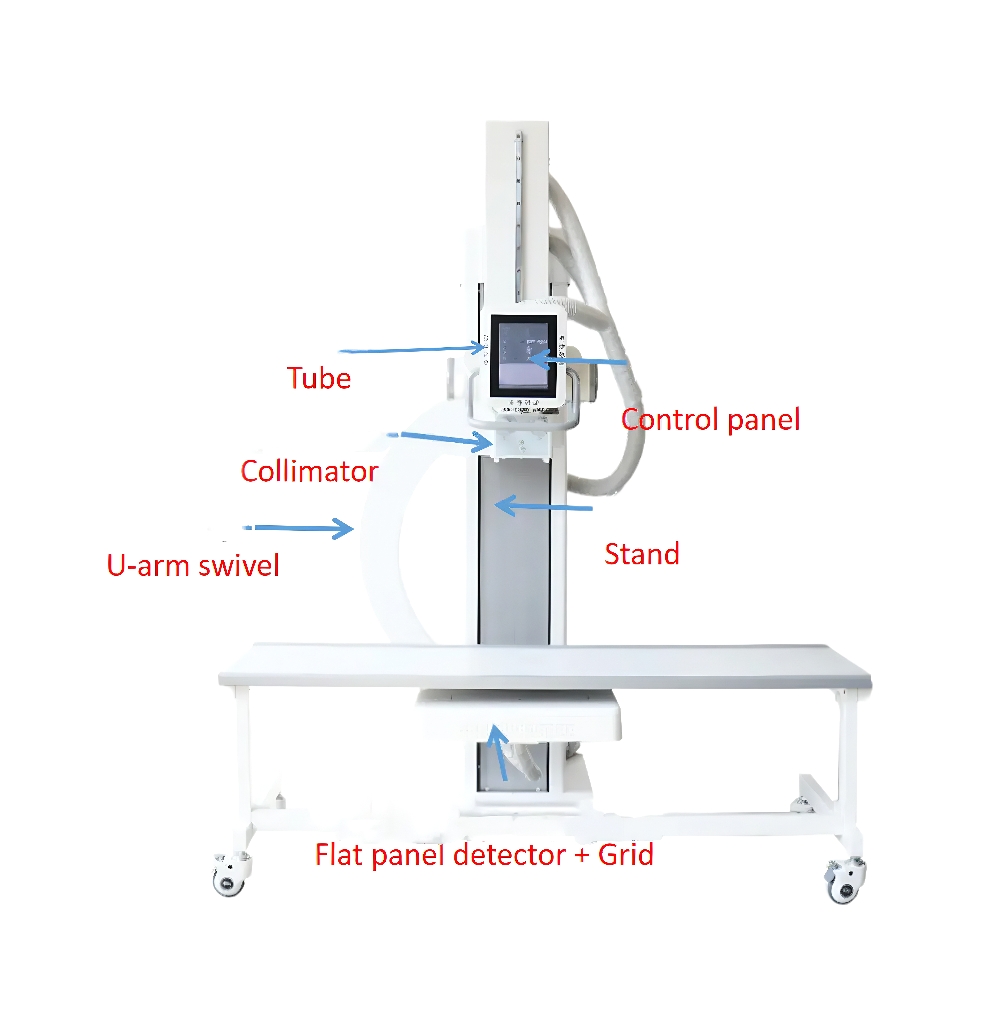

   Operate the U-arm to rotate, lift, or move horizontally, aligning the X-ray tube and detector with the target anatomical area.

3. Parameter preset & confirmation
   Select the corresponding examination protocol (e.g., chest/limb) via the touch screen; the system automatically matches exposure parameters (dose, voltage, etc.).


4. Digital image acquisition

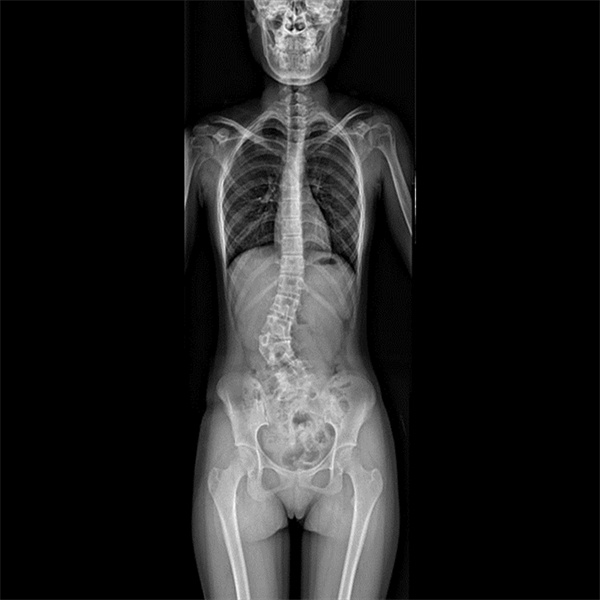

   Trigger one-key exposure; X-rays penetrate the body and are captured by the flat-panel detector, which converts the signal into a digital image in real time.

5. Image processing & circulation
   The system performs real-time post-processing (noise reduction, contrast enhancement) and transmits the image to the PACS system for physician review, storage, or sharing.
